Description

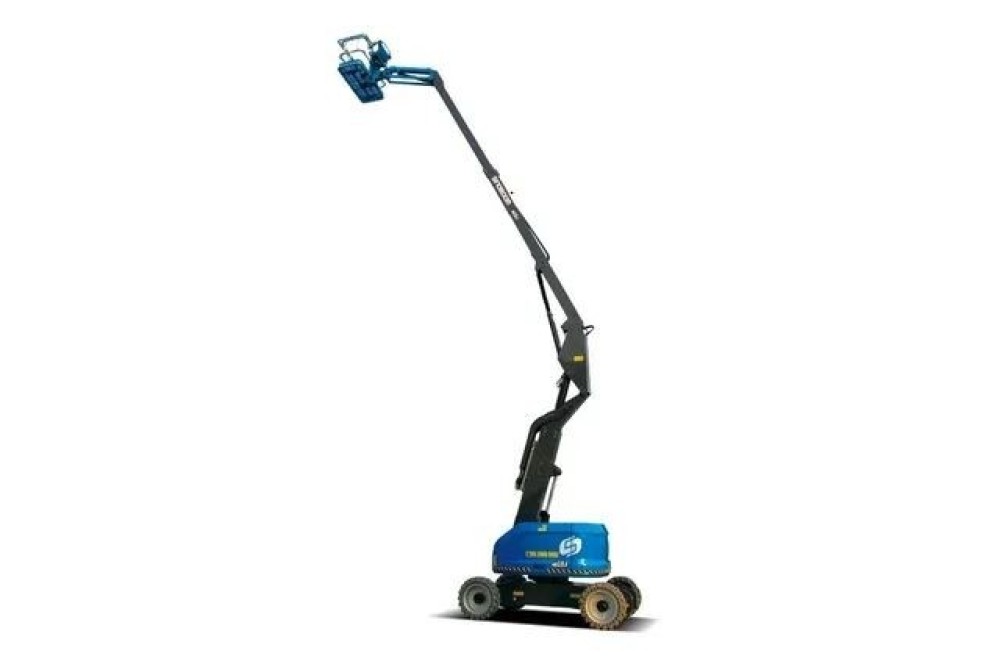

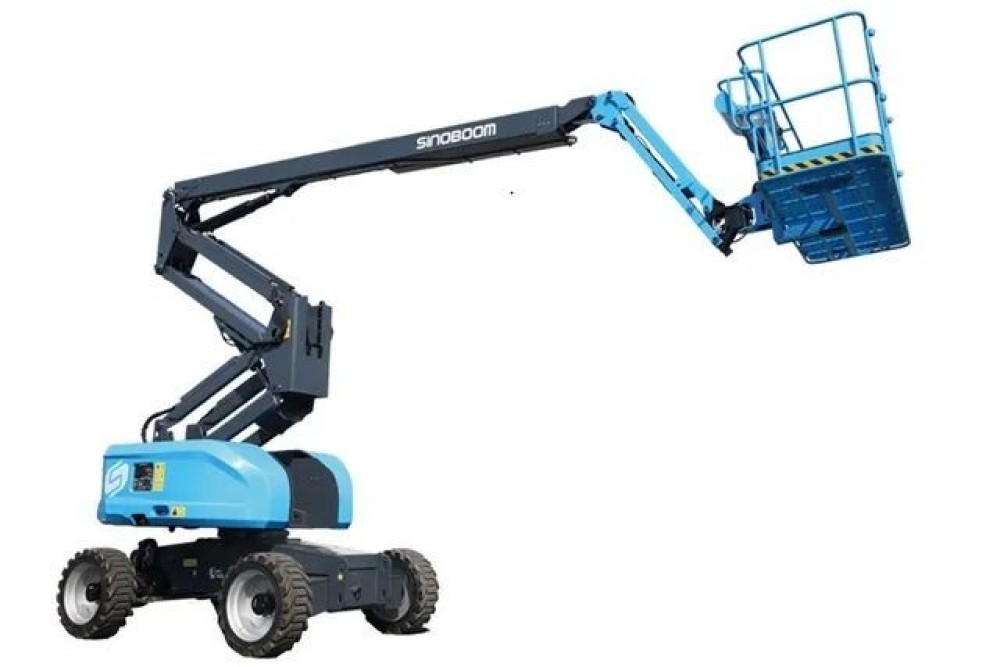

The Sinoboom AB18J boom lift features a 20-meter reach for projects needing precise maneuverability and extended height. It is well-suited for accessing elevated or challenging areas, including building maintenance, industrial installations, and outdoor construction work. Its sophisticated articulation enables the boom to move effortlessly over and around obstacles. The platform’s 3-joystick control system and 300-kg capacity ensure stable and efficient operation on uneven terrain while handling workers and equipment.
Highlights
Compact Design for Easy Transport
High-Visibility Operator Platform
Flexible Positioning in Tight Spaces
Technical specification
Reference Number: AMH211
Operating weight (kg): 10,700 Kg
Engine Output: 43 kW
Max Number of Operators: 2
Working Height: 20.3 m
Platform Capacity:250 kg
Max Horizontal Extension: 12.2 m
Power: Diesel engine
Drive × Steer: 4WD × 2WS
Turntable Rotation: 360°/Continuous
Platform Rotation: 160°
Gradeability: 40%
Features
Engine preheating-Anti-restart protection
AC power line to the platform
1.83 m (6') platform with swinging gate
Solid / Foam filled non-marking tires
Telematics-ready connector
Overhead anti-collision device
Price: AED 502000
Request for quote: +971525384269
