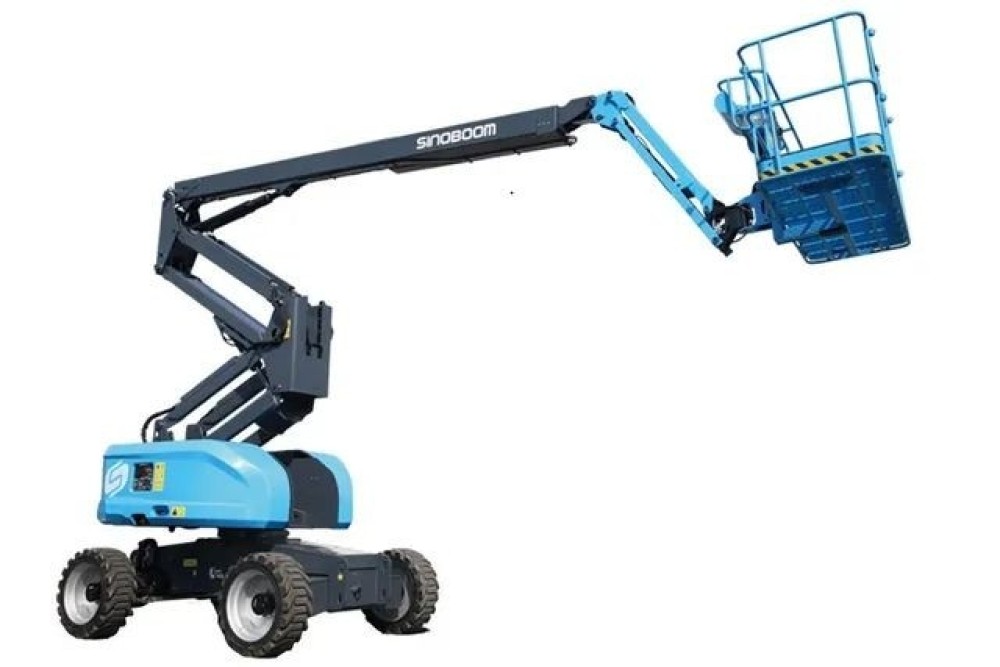

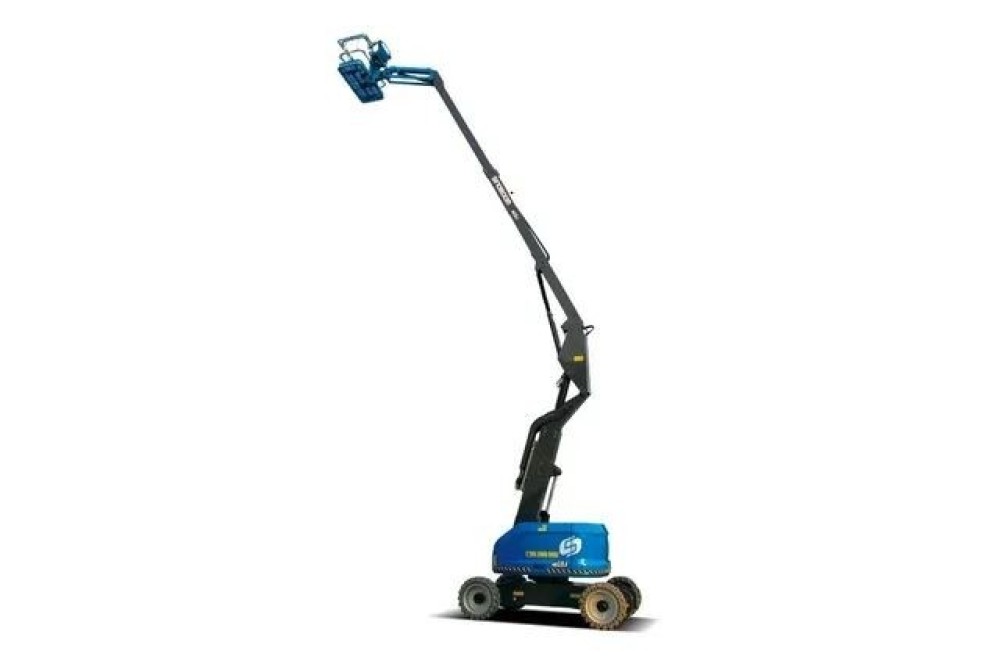

Designed to provide a 20-meter working height, the Sinoboom AB18J articulated boom lift is perfect for tasks needing extended reach and accurate maneuverability. It excels at reaching high or hard-to-access areas, ideal for maintenance, industrial projects, and construction outdoors. Its advanced boom articulation allows it to navigate obstacles smoothly. Equipped with a 3-joystick system and a 300-kg platform capacity, this aerial platform performs reliably on rough terrain and efficiently carries workers and equipment.
Highlights
Compact Design for Easy Transport
High-Visibility Operator Platform
Flexible Positioning in Tight Spaces

Technical specification
Reference Number: AMH211
Operating weight (kg): 10,700 Kg
Engine Output: 43 kW
Max Number of Operators: 2
Working Height: 20.3 m
Platform Capacity:250 kg
Max Horizontal Extension: 12.2 m
Power: Diesel engine
Drive × Steer: 4WD × 2WS
Turntable Rotation: 360°/Continuous
Platform Rotation: 160°
Gradeability: 40%

Features
Engine preheating-Anti-restart protection
AC power line to the platform
1.83 m (6') platform with swinging gate
Solid / Foam filled non-marking tires
Telematics-ready connector
Overhead anti-collision device


Price: AED 502000
Request for quote: +971525384269
