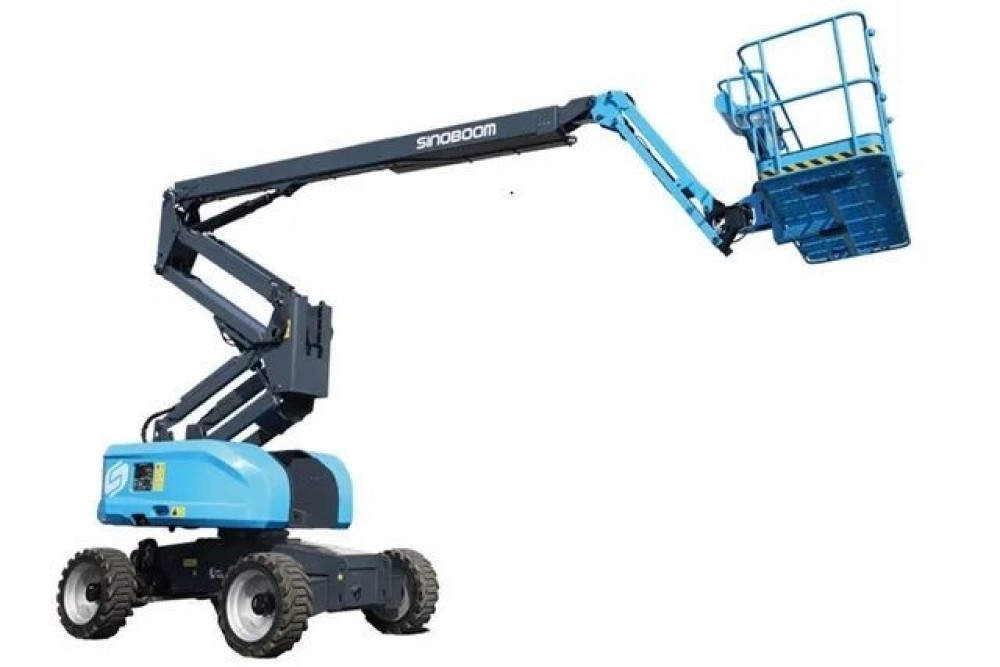

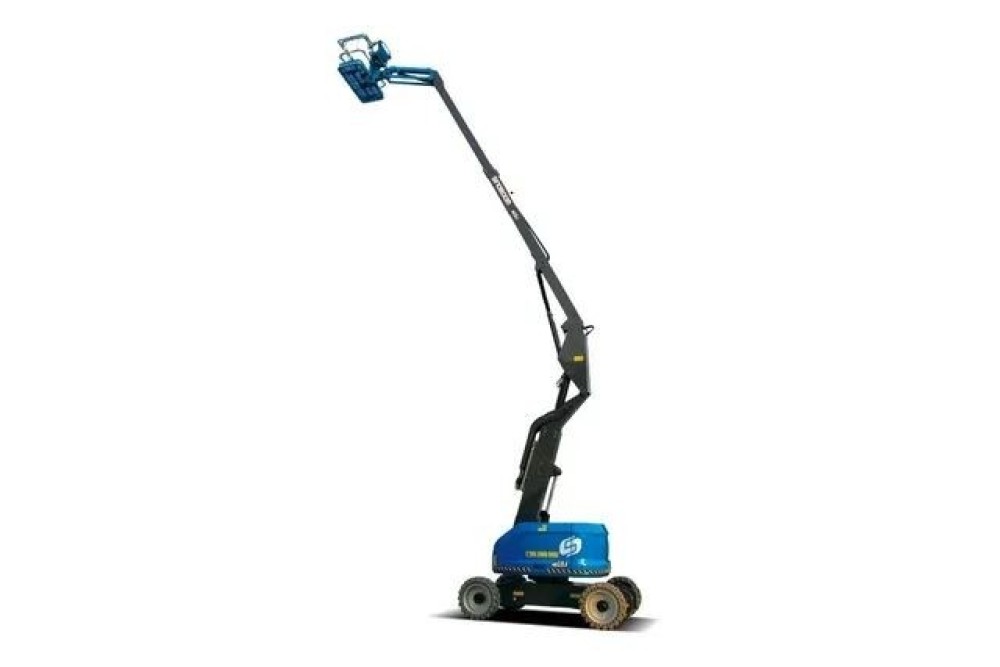

The Sinoboom AB18J articulated boom lift offers a 20-meter working height, ideal for tasks that require extended reach and precise maneuvering. It is perfect for accessing elevated or difficult-to-reach spots, making it suitable for building maintenance, industrial installations, and outdoor construction. Its advanced articulation enables the boom to easily navigate over and around obstacles. With a 3-joystick control system and a 300-kg platform capacity, this aerial platform confidently handles rough terrain while efficiently supporting workers and equipment.
Highlights
Compact Design for Easy Transport
High-Visibility Operator Platform
Flexible Positioning in Tight Spaces

Technical specification
Reference Number: AMH211
Operating weight (kg): 10,700 Kg
Engine Output: 43 kW
Max Number of Operators: 2
Working Height: 20.3 m
Platform Capacity:250 kg
Max Horizontal Extension: 12.2 m
Power: Diesel engine
Drive × Steer: 4WD × 2WS
Turntable Rotation: 360°/Continuous
Platform Rotation: 160°
Gradeability: 40%

Features
Engine preheating-Anti-restart protection
AC power line to the platform
1.83 m (6') platform with swinging gate
Solid / Foam filled non-marking tires
Telematics-ready connector
Overhead anti-collision device


Price: AED 502000
Request for quote: +971525384269
