Description
Features
Efficient and Versatile

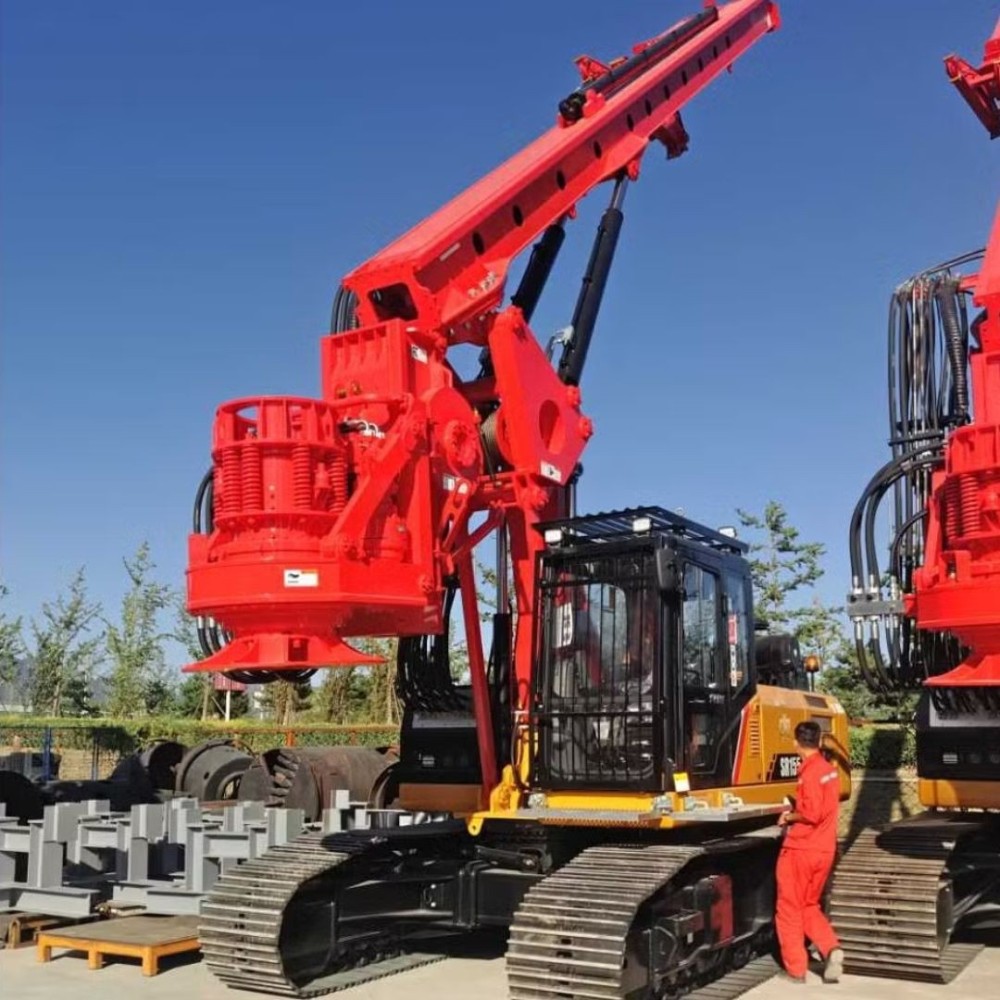

Widely used in civil engineering, the rig excels in constructing small-diameter and deep boreholes. It features fast hoisting speeds, excellent vertical alignment, and delivers high operational efficiency on job sites.
Advanced Chassis Design
The rig is equipped with a telescopic, wide-track chassis specially engineered for rotary drilling. A large-diameter, roller-type slewing bearing ensures exceptional stability during deep borehole operations.
Economical and Energy-Efficient
Powered by a high-displacement imported EFI engine, it uses intelligent power optimization technology to adjust power output in real-time. This results in faster response, improved fuel efficiency, and reduced energy consumption.
Parameters
Main Chassis
Base Engine: Isuzu 6HK1
Engine Power: 212/2000kW/rpm
Emission Regulation: China Stage III
Rotary Drive
Rated Speed: 5~30rpm
Rated Output Torque: 220kN·m
Pile
Max. Pile Diameter: 1800mm
Max. Pile Depth: 64/51m
Crowd System
Crowd Force: 180kN
Stroke: 4200mm
Line Pull: 190kN
Overall Machine
Overall Height: 21040mm
Operating Weight: 63T
Transport Width: 3510mm
Transport Height: 3560mm
Main Winch
Lifting Capacity: 220kN
Max. Line Speed: 75m/min
Rope Diameter: 28mm
Price: AED 2500000
Request for quote: +971525384269
