Features
Superior Torque and Crowd Force

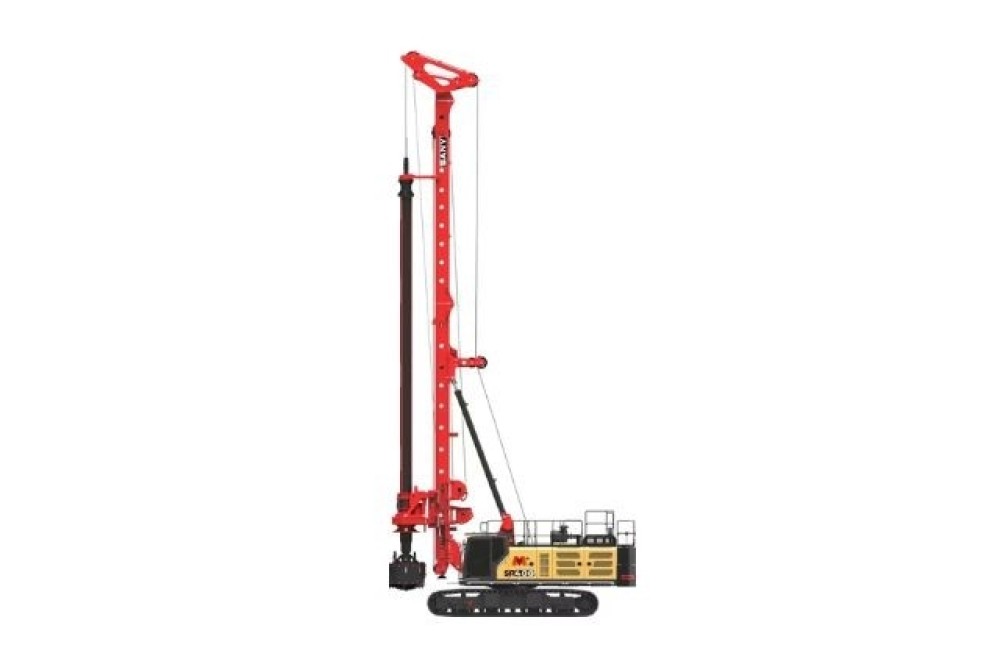

Built to deliver high torque and strong crowd force alongside a fast main rope speed, this rig ensures efficient drilling in hard soil, suited for large foundation projects such as railways and overpasses.


Winch Crowd with Long Stroke
Utilizes a winch crowd system with an extended stroke and rapid crowding, complemented by a rotary drive display, ideal for casing installation in beach, pebble, and backfill environments.
Fuel-Efficient Power Management
Employs intelligent power optimization to allocate energy dynamically in real-time, ensuring smooth operation, quick response, and reduced fuel consumption.

Parameters
Main Chassis
Base Engine: Cummins X15
Engine Power: 391/1800kW/rpm
Emission Regulation: Stage V/Tier4 final
Rotary Drive
Rated Speed: 7~26rpm
Rated Output Torque: 400kN·m
Pile
Max. Pile Diameter: 2500mm
Max. Pile Depth: 103/86m
Crowd System
Crowd Force: 405kN
Stroke: 9000/19000mm
Line Pull: 405kN
Overall Machine
Overall Height: 27430mm
Operating Weight: 137T
Transport Width: 3600mm
Transport Height: 3380mm
Main Winch
Lifting Capacity: 410kN
Max. Line Speed: 66m/min
Rope Diameter: 36mm


Price: AED 2830000
Request for quote: +971525384269
