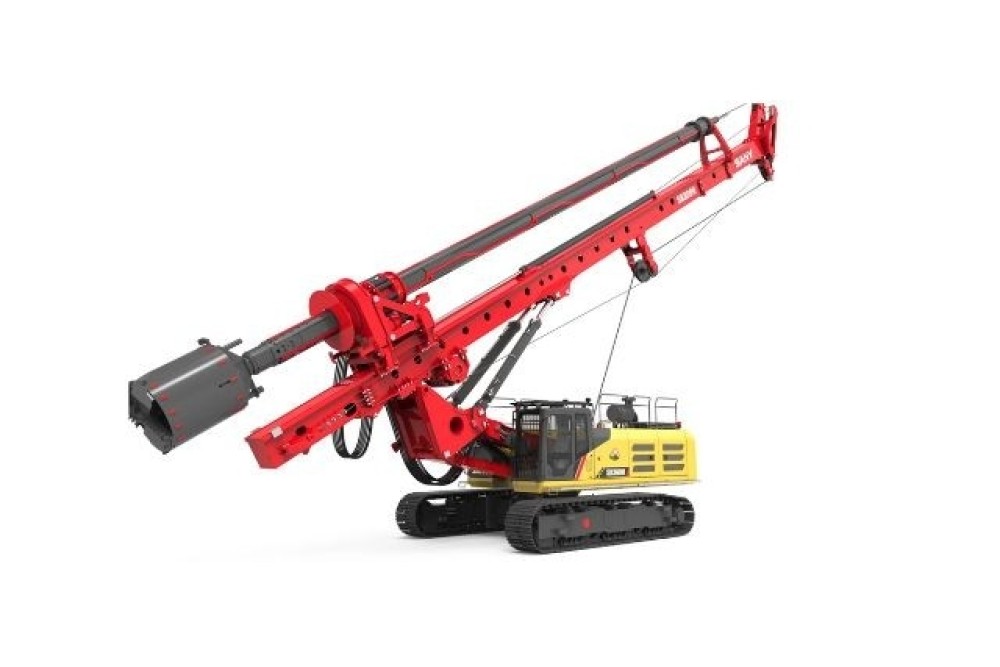

Features
Efficient Energy Use
Real-time power optimization enhances compound action speed and lowers fuel consumption by 10%–15%.
Enhanced Display
A 3ms refresh HD touchscreen delivers smooth animation. SANY patented locking visualization accurately depicts locking processes to reduce wear and accidents.
Maintenance Made Easy
External drive key on the rotary drive allows quick maintenance. Wedge fixation on the main winch wire rope end makes disassembly easy. Lubrication points with outlet hoses facilitate grease application.

Parameters
Main Chassis
Base Engine: Isuzu 6WG1
Engine Power: 300/1800kW/rpm
Emission Regulation: China Stage Ⅲ
Rotary Drive
Rated Speed: 5~25rpm
Rated Output Torque: 360kN·m
Pile
Max. Pile Diameter: 2500mm
Max. Pile Depth: 100/65m
Crowd System
Crowd Force: 290kN
Stroke: 6000mm
Line Pull: 335kN
Overall Machine
Overall Height: 26365mm
Operating Weight: 120T
Transport Width: 3530mm
Transport Height: 3745mm
Main Winch
Lifting Capacity: 360kN
Max. Line Speed: 75m/min
Rope Diameter: 36mm


Price: AED 3329000
Request for quote: +971525384269
